Seasoning Coffee Automated Packaging Machine Flour Chilli Detergent Milk Powder Filler

Brand Name:	LTPM CHINA
Model Number:	DoubFill-Series
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, MoneyGram
Supply Ability:	45 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang Province,China

Certification:

CE, GMP, SGS, BV

Warranty:

5 Years

Machinery Capacity:

4000BPH

Key Selling Points:

High Productivity

Packing Weight:

1 - 2000g

Packing Precision:

100~500g, ≤±1%;500~2000g, ≤±0.5%

Filling Speed:

50 ~ 70 Bottles Per Min

Power Supply:

3P AC208~415V 50/60Hz

Hopper Volume:

83L

Packaging Details:

Export Standard Wooden Case

Supply Ability:

45 sets/month

Highlight:

Detergent Milk Powder Filler Machine

4000BPH Automated Packaging Machine

Seasoning Coffee Flour Chilli Filler Machine

Product Description

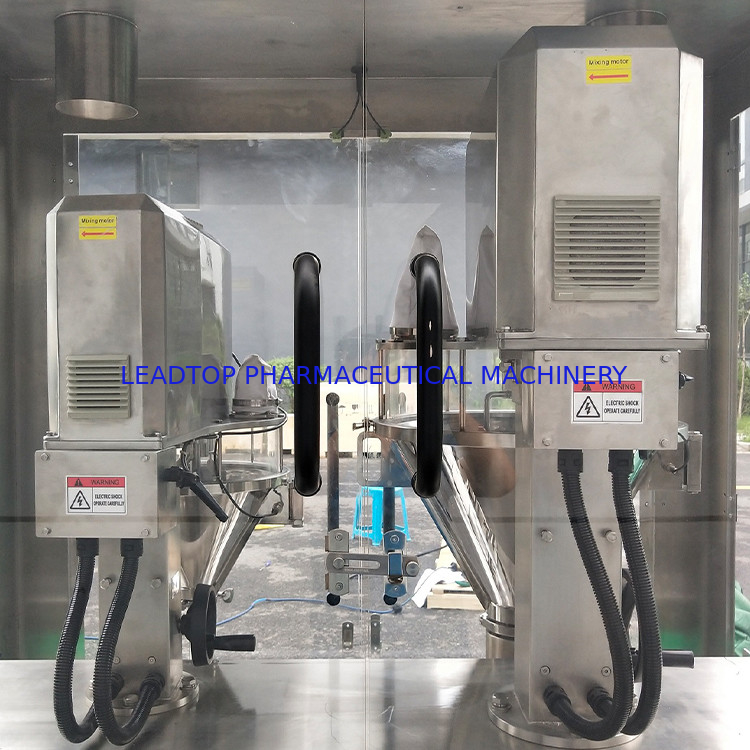

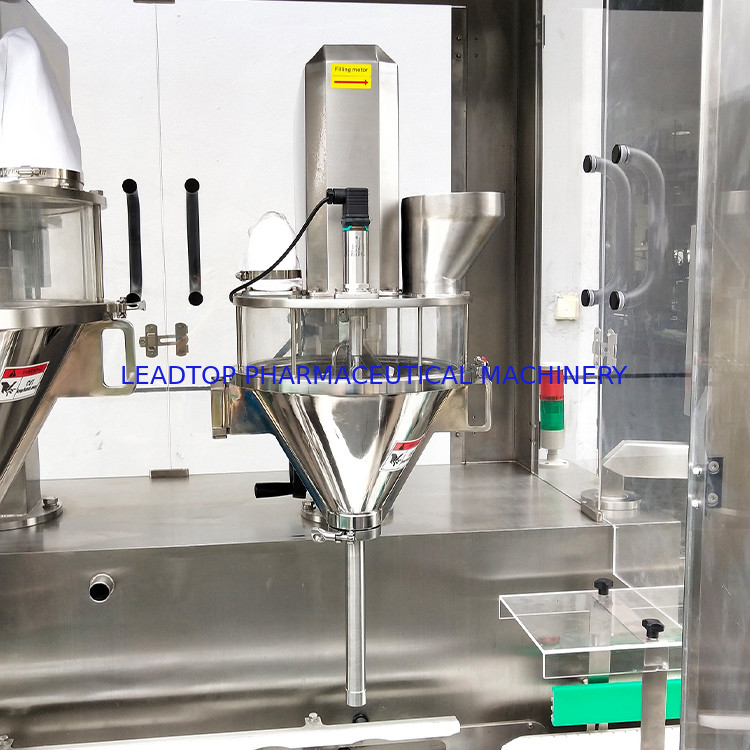

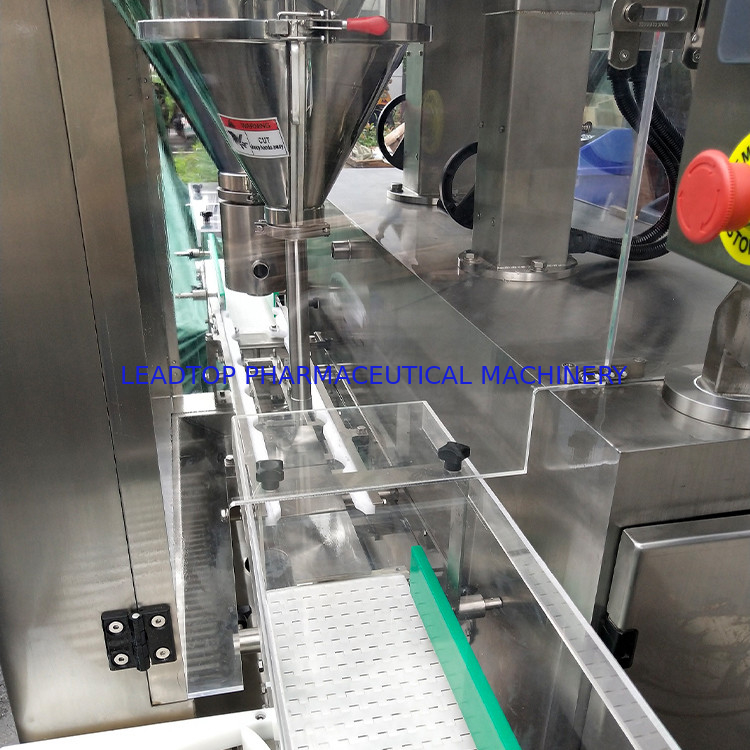

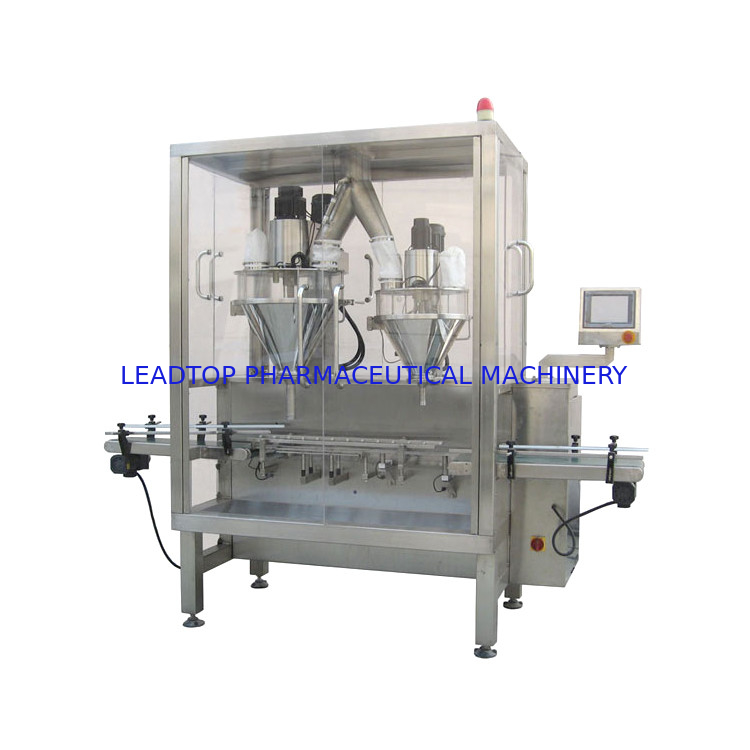

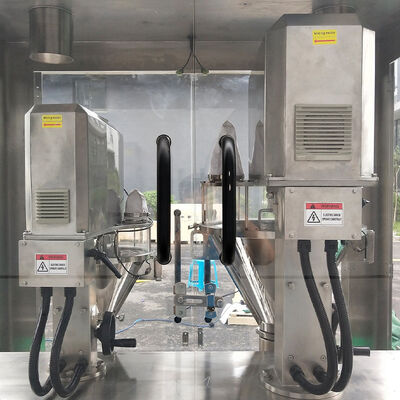

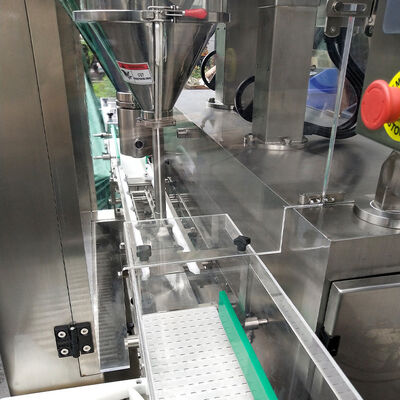

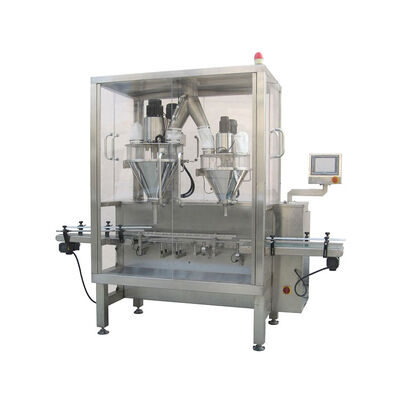

This Series Machine Is a New-Designed That We Make It On Placing The Old Turnplate Feeding On One Side. Dual Auger Filling Within One Line Main-Assist Fillers And The Originated Feeding System Can Keep The High-Precision And Take Off The Tiring Cleaning Of The Turntable. It Can Do The Accurate Weighing & Filling Work, And Also Could Combined With Other Machines To Buildup a Whole Can-Packing Production Line. This Machine Could Be Used In Filling Milk Powder, Albumen Powder, Condiment, Dextrose, Rice Flour, Cocoa Powder, Solid Drink, And So On.

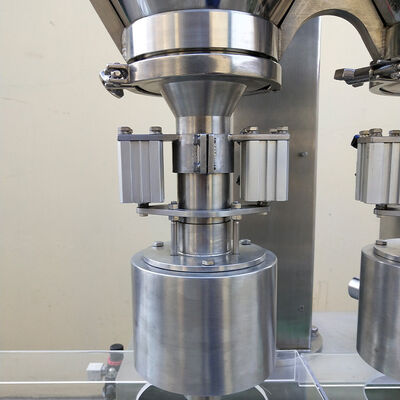

Seasoning Coffee Automated Packaging Machine Flour Chilli Detergent Milk Powder Filler 0

Main Features

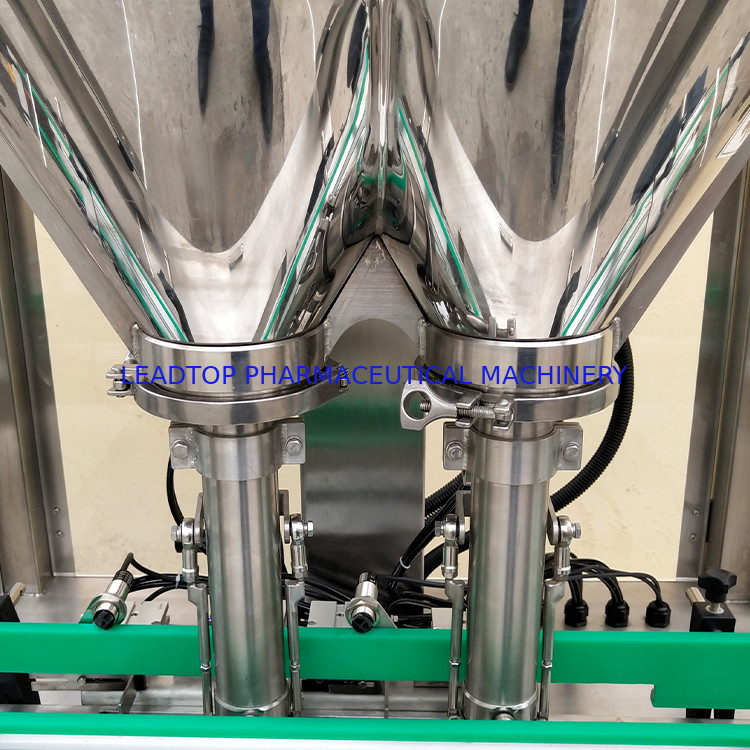

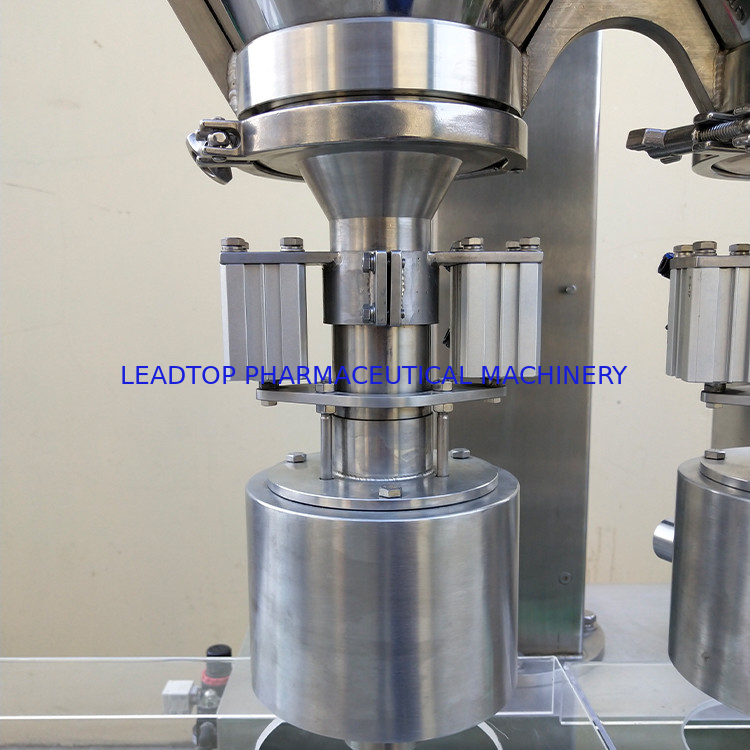

One Line Dual Fillers, Main & Assist Filling To Keep Work In High-Precision. 2.Can-Up And Horizontal Transmitting Is Controlled By Servo And Pneumatic System, Be More Accurate, More Speed.
Servo Motor And Servo Driver Control The Screw, Keep Stable And Accurate
Stainless Steel Structure, Split Hopper With Polishing Inner-Out Make It To Cleaned Easily.
PLC & Touch Screen Make It Be Easy Of Operation.
Fast-Respond Weighing System Make The Strongpoint To Real
The Handwheel Make The Exchange Of Different Filings To Be Easily.
Dust-Collecting Cover Meet The Pipeline And Protect Environment To Pollution.
Horizontal Straight Design Make The Machine In Little Area
Settled Screw Setup Make No Metal Pollution In Producing
With Whole System Central Control System.

Process:
Can-Into → Can-Up → Vibration → Filling → Vibration → Vibration → Weighing & Tracing → Reinforce → Weight Checking → Can-Out



Machine Parameters

Dosing mode	Dual filler filling with online weighing
Filling Weight	100 - 2000g
Container Size	Φ60-135mm; H 60-260mm
Filling Accuracy	100-500g, ≤±1g; ≥500g,≤±2g
Filling Speed	Above 50 cans/min(#502),Above 60 cans/min(#300 ~ #401)
Power Supply	3P AC208-415V 50/60Hz
Total Power	3.4 kw
Total Weight	450kg
Air Supply	6kg/cm 0.2cbm/min
Overall Dimension	2650×1040×2300mm
Hopper Volume	50L(Main) 25L (Assist)

Machine Details

Model	AugEle-A1 -2K	AugEle-A1 -3K	AugEle-A1 -5K	AugEle-A1 -7K	AugEle-A1 -8K	AugEle-A1 -12K
Charging Capacity	2m3/h	3m3/h	5 m3/h	7 m3/h	8 m3/h	12 m3/h
Diameter of pipe	Φ102	Φ114	Φ141	Φ159	Φ168	Φ219
Total power	0.55KW	0.75W	1.5KW	2.2KW	2.2KW	3.0KW
Total Weight	70kg	90kg	130kg	160kg	180kg	230kg
Thickness of Pipe	2.0mm	2.0mm	2.0mm	3.0mm	3.0mm	3.0mm
Outer dia.of Screw	Φ88mm	Φ100mm	Φ126mm	Φ141mm	Φ150mm	Φ200mm
Pitch	76mm	80mm	100mm	110mm	120mm	180mm
Thickness of Pitch	2mm	2mm	2.5mm	2.5mm	2.5mm	3mm
Dia.of Axis	Φ32mm	Φ32mm	Φ42mm	Φ48mm	Φ48mm	Φ57mm
Thickness of Axis	3mm	3mm	3mm	4mm	4mm	4mm

Power supply:3P AC208-415V 50/60Hz Charging Angle:Standard 45 Degree,30~60 Degree Are Also Available.
Charging Height:Standard 1.85M,1~5M Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts Ss304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.

Deploy List
Motor:Able(Chinese brand)
Gear reducer:Shanghai Saini,Ratio:1:10

Model	AugEle-A2 -2K	AugEle-A2 -3K	AugEle-A2 -5K	AugEle-A2 -7K	AugEle-A2 -8K	AugEle-A2 -12K
Charging Capacity	2m3/h	3m3/h	5 m3/h	7 m3/h	8 m3/h	12 m3/h
Diameter of pipe	φ102	φ114	φ141	φ159	Φ168	Φ219
Total power	0.58KW	0.78W	1.53KW	2.23KW	2.23KW	3.03KW
Total Weight	100kg	130kg	170kg	200kg	220kg	270kg
Hopper Volume	100L	200L	200L	200L	200L	200L
Thickness of Hopper	1.5mm	1.5mm	1.5mm	1.5mm	1.5mm	1.5mm
Thickness of Pipe	2.0mm	2.0mm	2.0mm	3.0mm	3.0mm	3.0mm
Outer dia.of Screw	Φ88mm	Φ100mm	Φ126mm	Φ141mm	Φ150mm	Φ200mm
Pitch	76mm	80mm	100mm	110mm	120mm	180mm
Thickness of Pitch	2mm	2mm	2.5mm	2.5mm	2.5mm	3mm
Dia.of Axis	Φ32mm	Φ32mm	Φ42mm	Φ48mm	Φ48mm	Φ57mm
Thickness of Axis	3mm	3mm	3mm	4mm	4mm	4mm

Power supply:3P AC208-415V 50/60Hz Charging Angle:Standard 45 Degree,30~60 Degree Are Also Available.
Charging Height:Standard 1.85M,1~5M Could Be Designed And Manufactured.
Square Hopper,With Vibrator,Round Hopper Could Be Designed And Manufactured.
Fully Stainless Steel Structure,Contact Parts SS304;
Remark: Other Charging Capacity Could Be Designed And Manufactured.

Deploy List

Motor:Able(Chinese brand)
Gear reducer:Shanghai Saini,Ratio:1:10
Vibrating motor:Oli-Wolong,Power:30W
