15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine

15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine

Brand Name:	LTPM China
Model Number:	LTDG-Series
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	15 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Weight:

1200kgs

Item Name:

Freeze Dryer

Dry Area:

1.08 Square Meter

Tray Area:

1.02 Square Meter

The Total Volume Of Dehydration:

15 Kg/batch

Shelf Spacing:

70 Mm

Heating Mode:

Conduction Mode

Control System:

PLC Control

Packaging Details:

Export Standard Wooden Case

Supply Ability:

15 Set/Month

Highlight:

15kg/Batch Pharmaceutical Dryers

PLC Fruit Freeze Drying Machine

40L/Min Pharmaceutical Dryers

Product Description

High Quality Food Freeze Dryer Fruit Freeze Drying Machine For Sale

This machine is made by a low noise antihigh temperature axial flow fan and an automatic control temperature system. The whole circulation system is fully enclosed to make that the heat efficiency of the drying machine increases from traditional 3%-7% to 35%-45%. The highest heat efficiency can reach 50%. This saves lots of energy for our country and increases the economic benefits.

Technical Parameters

Power	167Kw, 380V±10%,50HZ,3Phase,5Wire
Vacuum function	19.8kw
Refrigeration function	92kw
Heating function	55.5kw
Compressed air	≥40L/min(P=0.5~0.8Mpa)
Cooling water Quantity	≥50m3/h(T≤30℃,P=0.2-0.3Mpa)
Defrost water Quantity	≥4000kg(T≥30℃,P=0.1-0.2Mpa)
Whole volume(L×W×H)	Dry chamber and Condenser: D=φ2100mmL=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
Structure	Split
Total weight	15T(Approx.)

Characters of freeze food dryer

Most of the hot air is circulated in the herbs dehydration machine.By using the forced ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.

Heating source: electricity, steam, far infrared of steam and electricity.

Temperature allowed with this fruit vegetable dryer heat 50°C-140°C,the maximum is 150°C. Electricity heat 50-350°C.

Automatic control system and computer control system for your choice.

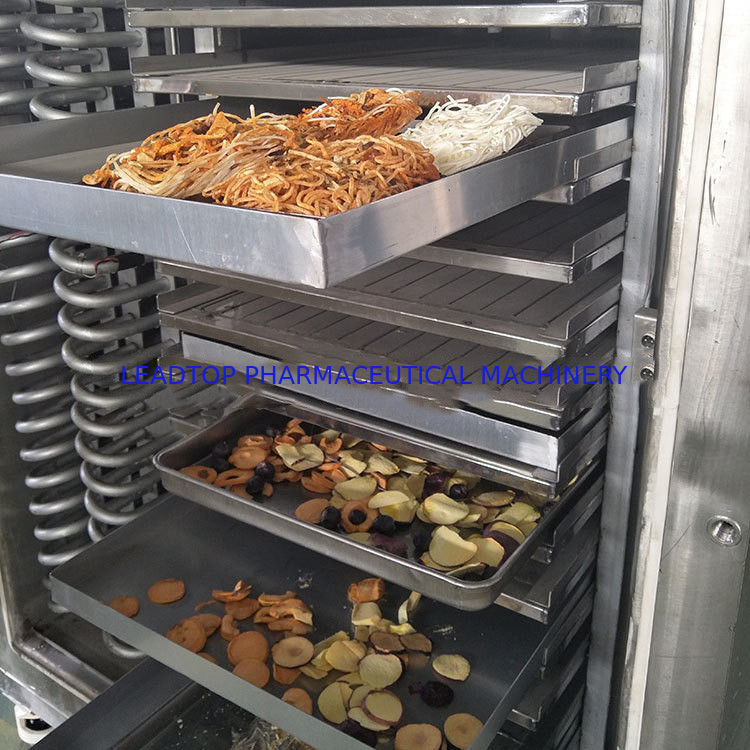

15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine 0

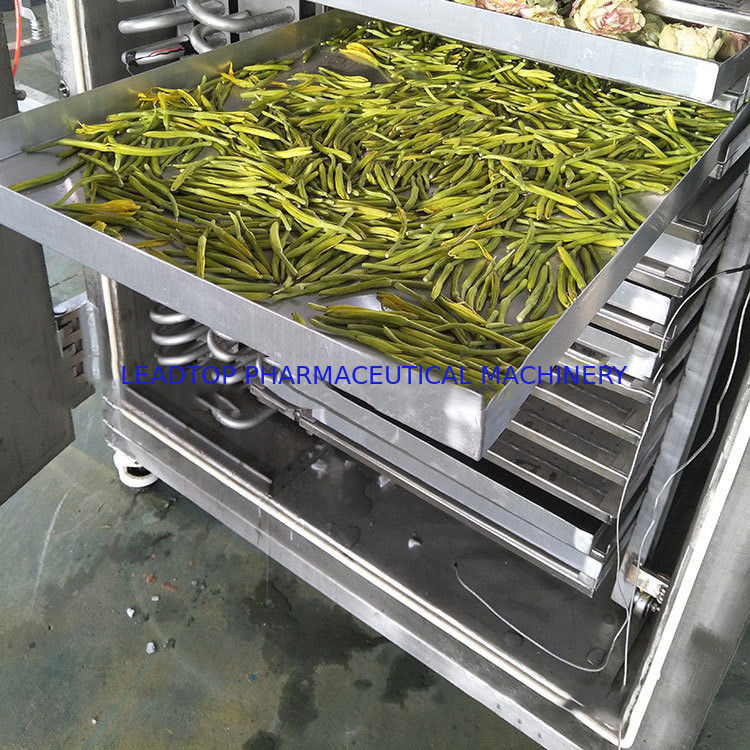

15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine 1

Applications :

♦ Vegetables: Edible mushrooms, garlic slices, scallions, green beans, peas, cucumbers, sweet corn kernels, carrots, spinach, asparagus, wild vegetables, etc.
♦ Aquatic products and meat: shellfish, shrimp, fish sticks, beef, pork, chicken, mutton and so on.
♦ Seasoning: garlic powder, ginger powder, onion powder, tomatoes, pepper.
♦ Instant drinks: coffee, tea, soup, soy milk, milk, etc.
♦ Convenience food: children's food, snack food, military camp food
♦ Fresh Chinese herbal medicine: ginseng, antler, medlar, notoginseng, etc.

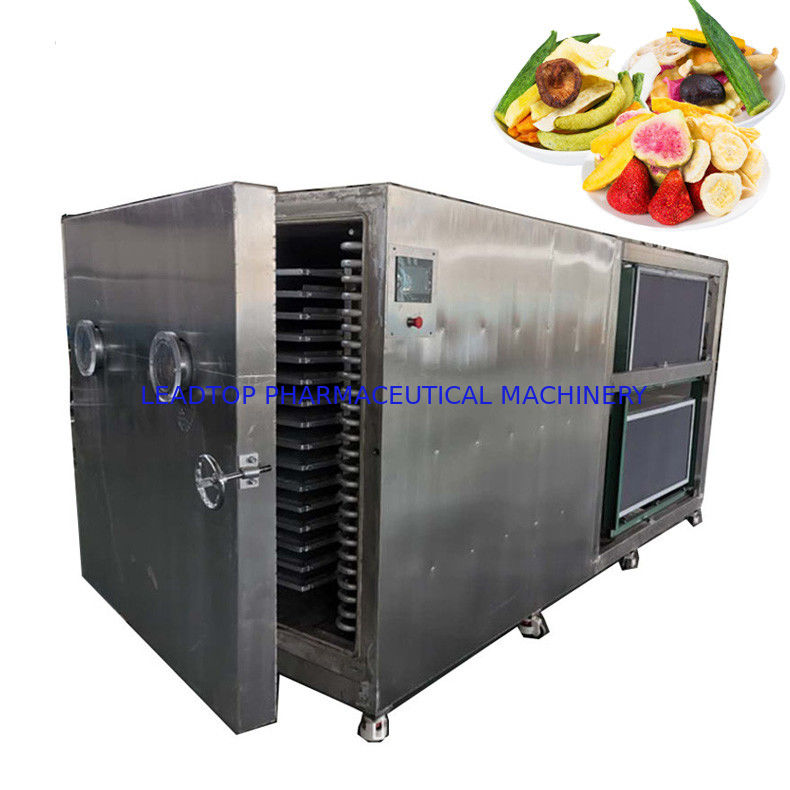

15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine 2

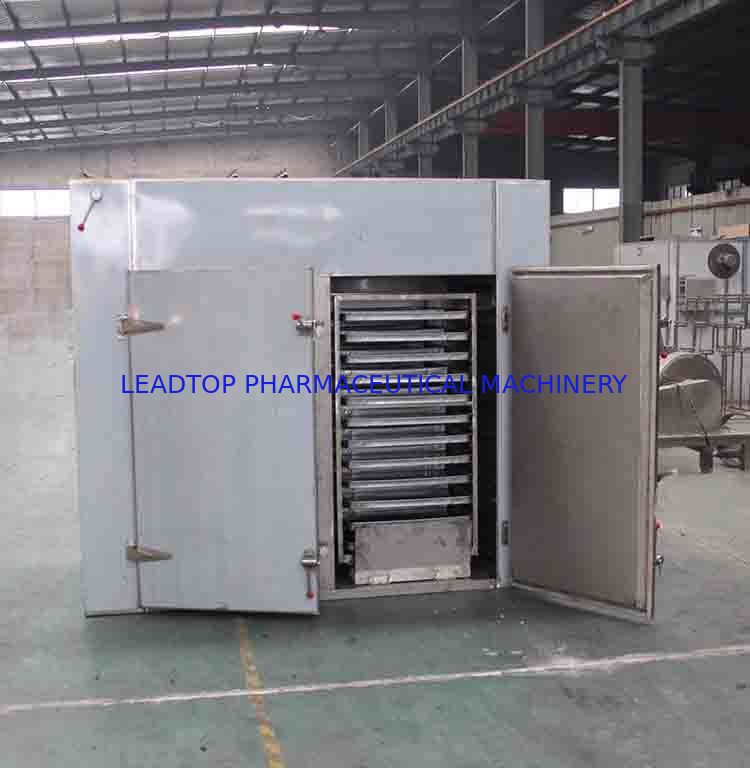

15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine 3

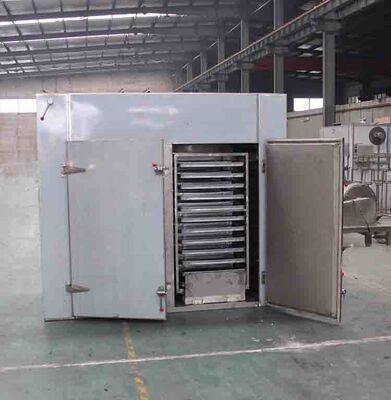

15kg/Batch Pharmaceutical Dryers PLC Fruit Freeze Drying Machine 4
